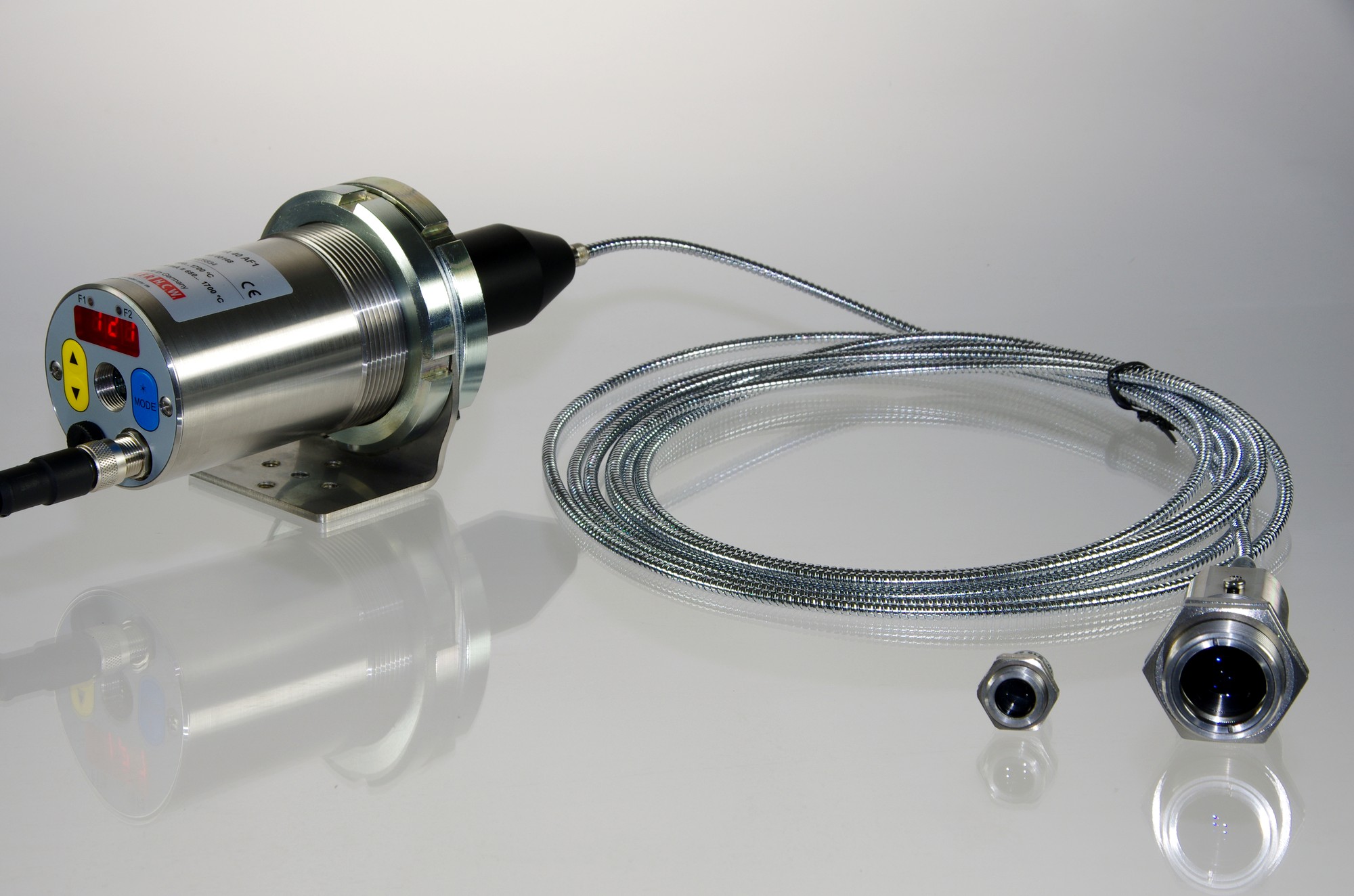

PA-광섬유형
HOME > 제품소개 > 적외선온도계(KELLER) > PA-광섬유형
| Product | Features & Benefits | Data |
|---|---|---|
 |
|
카다로그
2 Analogue outputs
0(4) - 20 mA linear, scalable
Load
max. 500 Ω
Voltage input
0 - 10 V linear, scalable
2 Switching outputs
Open Collector 24 V, ≤ 30 mA
2 Switching inputs
to 24 V
Data communication
• USB
• RS-485
Integrated user interface
LED Display
4-digit (digit height 8 mm)
Resolution
Current output
0.2 K + 0.03 % of selected range
Temperature reading
1 K
USB / RS-485
0.1 K in terminal mode
Operating voltage
24 V DC +10% / -20%
Current consumption
≤ 135 mA
≤ 150 mA with laser sighting
≤ 175 mA with video camera
Ripple ≤ 200 mV
Permissible humidity
95 % r.H. max.
(non-condensing)
Ambient temperature:
0 - 65 °C (without cooling)
Storage temperature
-20 - +80 °C
Housing material
Stainless steel
Protection
IP65 according to DIN 40050
Connectivity
M14 thread, 8-pin connection
Weight
approx. 0.9 kg
0(4) - 20 mA linear, scalable
Load
max. 500 Ω
Voltage input
0 - 10 V linear, scalable
2 Switching outputs
Open Collector 24 V, ≤ 30 mA
2 Switching inputs
to 24 V
Data communication
• USB
• RS-485
Integrated user interface
LED Display
4-digit (digit height 8 mm)
Resolution
Current output
0.2 K + 0.03 % of selected range
Temperature reading
1 K
USB / RS-485
0.1 K in terminal mode
Operating voltage
24 V DC +10% / -20%
Current consumption
≤ 135 mA
≤ 150 mA with laser sighting
≤ 175 mA with video camera
Ripple ≤ 200 mV
Permissible humidity
95 % r.H. max.
(non-condensing)
Ambient temperature:
0 - 65 °C (without cooling)
Storage temperature
-20 - +80 °C
Housing material
Stainless steel
Protection
IP65 according to DIN 40050
Connectivity
M14 thread, 8-pin connection
Weight
approx. 0.9 kg
